DK Series Options and Accessories article

DK series accessories

DKBS
Bi-lateral slit option for DK240/242/480. Both sides of slits are automatically controlled for maintaining image centering when wider slits are necessary (tolerance ± 10μm).

DKGPIB
Internal IEEE-488/GPIB communication interface option for DK240/242/480. Separate output connector from Monochromator.

IR240
For use with DK240. Infrared (gold) coatings on optics for DK240. Enhances transmission by up to 40% between 600 -1100nm. Not suitable for work below 600nm.

IR240SP
Same as above, for use with DKSP240

IR242
For use with DK242. Infrared (gold) coatings on optics for DK242. Enhances transmission by up to 80% between 600 - 1100nm.

IR242SP
Same as above, for use with DKSP242

IR480
For use with DK480. Infrared (gold) coatings on optics for DK480. Enhances transmission by up to 40% between 600 -1100nm.

IR480SP
Same as above, for use with DKSP480

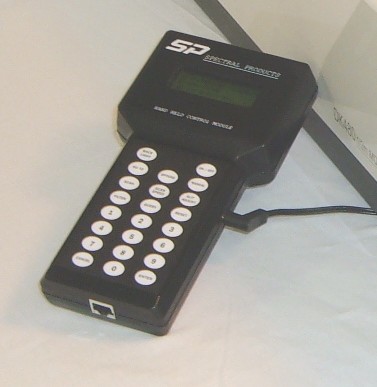

DK2401
Hand-held monochromator controller for DK240/242/480. Allows local control of monochromator when computer is not available or in series with a computer.

DK24PS
RS232 Cable assembly for PS/2 style computer

DK24MA
RS232 Cable assembly for MAC style computer

DK24IC
IEEE-488/GPIB universal cable assembly

AB300
Six position, 1" diameter automatic filter wheel assembly that bolts directly to DK entrance. Recieves power and commands directly through DK unit. See page 92 for more information.

DKSP-TO-DK
Attachment to allow DKSP Spectrograph to operate as a monochrometor. It includes CM standard 6-fixed slit set (page 17).

AB200
Single filter carrier that mounts directly between DK unit and accessories
